Automatic Barriers

Automatic Barriers

Automatic barriers or "Boom gates" are typically found at parking facilities, checkpoints and entrances to restricted areas. They are also the usual method for controlling passage through toll booths. In some places, boom gates are installed as a traffic calming measure, preventing through traffic, while allowing authorised vehicles such as emergency services and buses to take advantage of the shorter and more direct route.

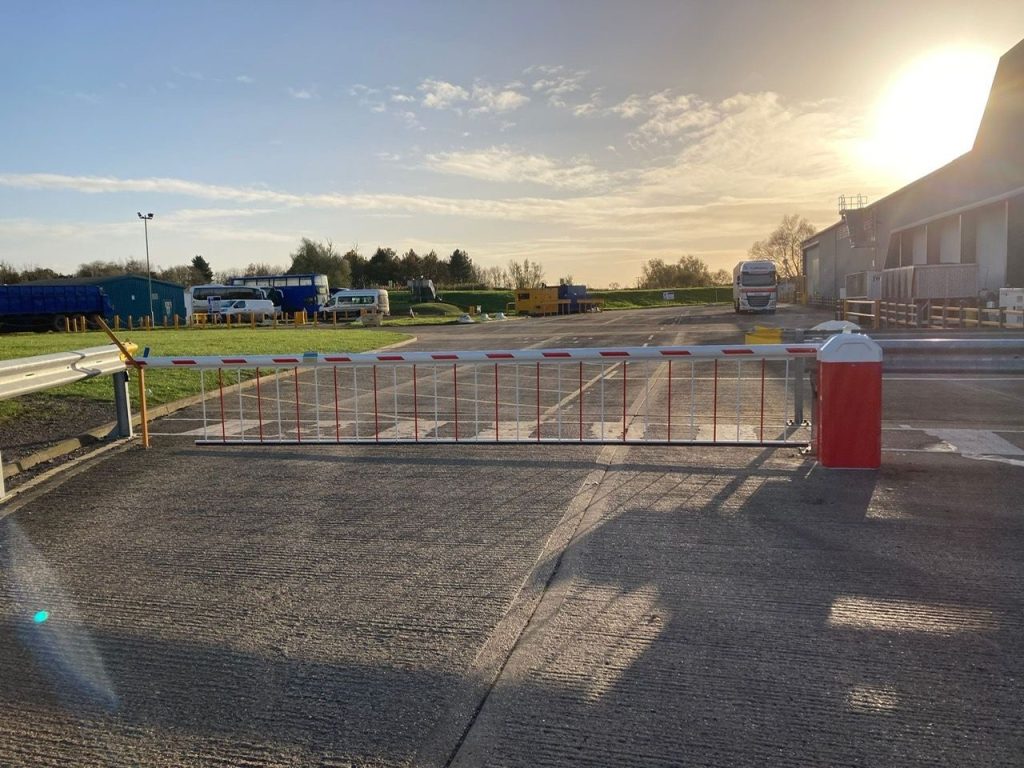

The PF6000 Automatic Barrier Range

The PF6000 Automatic Barrier range is produced by Parking Facilities Ltd, the leading manufacturer of Automatic barriers in the UK. Our designs use the latest technology to maintain the barriers smooth operation, via an integral Telemecanique inverter driven motor and gearbox drive, which only requires a singe phase supply, providing a smooth consistent operation.

It is controlled by a Telemecanique PLC Control Board, which can be programmed to suit any form of access control requirements, therefore allowing speedy installation and no return visits to modify the programmes.

The power input to our automatic barrier is 230v controlling a three phase motor, hence enables us to offer reliability and high torque. With this control panel and gearbox design, we do not require any springs or counterweights to assist in the operation of the barriers.

Our aluminium externally placed control cabinet has been designed to stand out from the rest. Its sleek looks are achieved by investing heavily into aluminium extrusions, which ensures product longevity, making it look as good as the day it was installed.


PF6000B

PF6000B Features

  • Removable cast aluminium hood
  • Arm lengths up to 4.0 metres
  • Single phase supply, 3 phase motor
  • Motor & gearbox direct drive
  • Inverter driven
  • Adjustable speed, acceleration and deceleration
  • No springs required or counterweights
  • Pre-wired loop detector bases for single channel safety and entry/exit control
  • Heavy duty roller plunger limit switches
  • Programmable Logic Control - c/w fault diagnostic on screen display
  • Manual override in case of power failureMotor
  • Comes complete with M12 anchor shield bolts
  • 1.5 Amp power supply for additional access control

PF6000B Added benefits

  • Corporate colours available on request
  • Low maintenance
  • Ease of installation
  • Heavy duty pillar block bearings

Optional extras:

Pogo tip support
LED Boom lights
Stop/No Entry signs
Sensing safety edges

Options for access control:

Keypad
Proximity Cards
Photo Cells
Voice/Video Intercom Access
Token Acceptors
Remote Control Fobs
Key Switch
Loop Detectors


Box

PF6000S Features


  • Removable cast aluminium hood
  • Arm lengths up to 6.0 metres
  • Single phase supply, 3 phase motor
  • Motor & two stage gearbox direct drive
  • Inverter driven
  • Adjustable speed, acceleration and deceleration
  • No springs required or counterweights

  • PF6000S Added benefitsPre-wired loop detector bases for single channel safety and entry/exit control
  • Heavy duty roller plunger limit switches
  • Programmable Logic Control - c/w fault diagnostic on screen display
  • Manual override in case of power failure
  • Comes complete with M12 anchor shield bolts
  • 1.5 Amp power supply for additional access control

  • Corporate colours available on request
  • Low maintenance
  • Ease of installation
  • Heavy duty pillar block bearings

Optional extras:

Articulated Arm (Low Ceilings)
Pogo tip support
LED Boom lights
Magnetic lock
Lorry Height Stop/No Entry signs
Sensing safety edges
Folding Bottom Skirt up to 4.5m

Options for access control:

Keypad
Proximity Cards
Photo Cells
Voice/Video Intercom Access
Token Acceptors
Remote Control Fobs
Key Switch
Loop Detectors


Box

PF6000Lux Features


  • Removable cast aluminium hood
  • Arm Lengths upto 7.0 metres
  • Single phase supply, 3 phase motor
  • Motor & two stage gearbox direct drive
  • Inverter driven
  • Adjustable speed, acceleration and deceleration
  • No springs required or counterweights
Lux Inside Barrier
  • Pre-wired loop detector bases for single channel safety and entry/exit control
  • Heavy duty roller plunger limit switches
  • Programmable Logic Control - c/w fault diagnostic on screen display
  • Manual override in case of power failure
  • Comes complete with M12 anchor shield bolts
  • 1.5 Amp power supply for additional access control

PF6000Lux Added benefits


  • Corporate colours available on request
  • Low maintenance
  • Ease of installation
  • Heavy duty pillar block bearings

Optional extras:

Articulated Arm (Low Ceilings)
Pogo tip support
LED Boom lights
Magnetic lock
Lorry Height Stop/No Entry signs
Sensing safety edges
Folding Bottom Skirt up to 6.0m

Options for access control:

Keypad
Proximity Cards
Photo Cells
Voice/Video Intercom Access
Token Acceptors
Remote Control Fobs
Key Switch
Loop Detectors


Box

PF6000HD Features


  • Removable cast aluminium hood
  • Arm lengths up to 9.0 metres
  • Single phase supply, 3 phase motor
  • Motor & two stage gearbox direct drive
  • Inverter driven
  • Adjustable speed, acceleration and deceleration
  • No springs required or counterweights
  • Pre-wired loop detector bases for single channel safety and entry/exit control
  • Heavy duty roller plunger limit switches
Box 2
  • Programmable Logic Control - c/w fault diagnostic on screen display
  • Manual override in case of power failure
  • Comes complete with M16 anchor shield bolts
  • 1.5 Amp power supply for additional access control

PF6000HD Added benefits


  • Corporate colours available on request
  • Low maintenance
  • Ease of installation
  • Heavy duty pillar block bearings

Optional extras:

Pogo tip support
LED Boom lights
Magnetic lock
Lorry Height Stop/No Entry signs
Sensing safety edges
Folding Bottom Skirt up to 8.0m

Options for access control:

Keypad
Proximity Cards
Photo Cells
Voice/Video Intercom Access
Token Acceptors
Remote Control Fobs
Key Switch
Loop Detectors


Gallery

  • Automatic barriers in car park

    Automatic barriers in car park

  • PF6000S Automatic Barrier

    PF6000S Automatic Barrier

  • Automatic Barrier Opening

    Automatic Barrier Opening

  • PF6000S side shot

    PF6000S side shot

  • PF6000 Lux installed at Barracks

    PF6000 Lux installed at Barracks

  • Pf6000 Lux With Bottom Skirt

    Pf6000 Lux With Bottom Skirt

  • Heavy Duty Barrier in Corporate Colours

    Heavy Duty Barrier in Corporate Colours

  • New Aluminium Hi-Bar Design

    New Aluminium Hi-Bar Design

  • PF6000B New Model Released

    PF6000B New Model Released

  • Installation with Bollards

    Installation with Bollards

  • Security Hut Installation

    Security Hut Installation
